Rack

Seismic rack

It is designed in compliance with international standards (IEC, DIN, EIA), ensuring compatibility with all 19-inch and 21-inch equipment. As the frequency of earthquakes has increased both domestically and globally, the importance of seismic design has become more prominent. This seismic rack has obtained certified seismic performance, verifying its structural stability even during earthquakes, and provides reliable protection for internal equipment in high-risk situations. (Certified in accordance with the seismic testing method for broadcasting and communication equipment, National Radio Research Agency Notice No. 2015-14)

1 2 3 4 5 6 7 8 9

Standard configuration

Equipped with 4 mounting frames
Front door: honeycomb perforation
Rear door: honeycomb perforation
Side doors: bolt-fixed detachable type
Color: Black

Standard Accessories

Related Accessories

Load Capacity

Rear Cable Bar Grounding Bar Power Outlet Caster Wheels

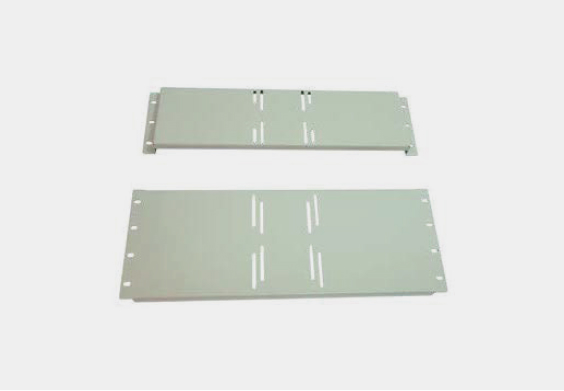

PDU Guide Angle Shelf Seismic Base

1500kg

Rack

Server rack

Designed in compliance with international standards (IEC, DIN, EIA), this product is suitable for mounting medium- to large-sized server equipment and network devices. It features a modern design and optimized airflow with sufficient perforation on the front and rear panels, ensuring excellent performance and usability. With its refined design, it provides an optimal solution for easy server equipment installation.

1 2 3 4 5 6 7 8 9

Standard configuration

4 mounting frames installed
Front door: removable perforated door
Rear door: removable perforated door
Side doors: removable using slide latch
Color: black

Standard accessories

Fan shelf Power outlet Rear cable bar Side cable bar

Load capacity

1000kg

Rack

Standard rack

It is a standard telecommunications rack designed in compliance with international standards (IEC, DIN, EIA), offering excellent compatibility along with a refined design, robustness, and durability. Various types of equipment—such as LAN/WAN, network devices, industrial PCs, structured cabling systems, and measuring instruments—can be installed on shelves or mounted using rack-mount configurations.

1 2 3 4 5 6 7

Standard configuration

Equipped with 4 mounting frames
Front door: detachable 5T tempered safety glass
Rear door: detachable with bottom air intake vent holes
Side doors: detachable using slide latches
Color: Ivory, 5Y7/1

Standard Accessories

Fan Shelf Power Outlet Rear Cable Bar

Load capacity

1000kg

Rack

Chimney

It is called a chimney rack because the rear of the rack resembles a chimney when installed.

Key Features

Patent No.: KR Patent No. 10-2452096, “Chimney Rack System with Unmanned Door Operation”

Installed at the rear of racks housing communication equipment, this system concentrates hot air discharged from the rear and exhausts it to the outside through an upper duct.
Its core function is to maintain a lower indoor temperature in equipment rooms, thereby reducing air-conditioning usage and lowering overall power consumption.

Additional Features

Real-time monitoring of internal rack temperature through the customer’s integrated monitoring system ensures optimal temperature control, protecting installed equipment.
It also integrates with other environmental facilities to provide optimized functionality, allowing operators to detect abnormalities in unmanned site infrastructure environments.
In the event of a power outage, automatic door opening helps prepare for emergencies and reduces operational risk for equipment.

Annual electricity cost:
approximately 20% or more reduction

Applied to high-heat-generating communication equipment such as LTE-DUs, it reduces power consumption by improving air-conditioning efficiency.

In typical communication equipment, cold air is drawn in from the front, used to lower internal temperature, and then expelled to the rear. However, the rear door can trap the hot air, causing internal temperature to rise.
To address this, rear doors are often perforated with air vents or removed entirely to allow heat to escape more easily.
However, this creates a “hot zone” at the rear of the rack where hot air accumulates, increasing the overall room temperature and reducing cooling efficiency.
By eliminating this hot zone and collecting/exhausting hot air outside the equipment room, internal temperature is reduced, improving cooling efficiency and lowering power consumption and energy costs.

※ Rack collects high-temperature air at the rear and exhausts it upward.
The accumulated hot air at the top is discharged outside the building through an exhaust duct.

DC FAN

Emergency operation is possible during power outages
through DC fan operation at the top of the chimney rack.

A DC fan is installed at the top of the chimney rack to efficiently transfer accumulated heat
to the exhaust duct. In the event of AC power failure, it can operate using emergency power
from a rectifier with a backup battery.

(Internal temperature °C / Fan airflow ㎥/min)

25°C -> 70%
30°C -> 80%
35°C -> 90%
40°C or higher → 100%

Airflow and internal temperature of the server
are measured to determine and apply optimal fan
specifications based on equipment characteristics.

Automatic door opening function for power outage and fire emergencies

It is equipped with a temperature sensor and an automatic
opening cylinder, allowing automatic opening during
a power outage to release internal heat.

It is equipped with a temperature sensor and an automatic opening cylinder. In the event of abnormalities such as temperature rise due to power failure or fan malfunction, the door automatically opens to release heat. In addition, a damper inside the exhaust duct closes in case of fire, while the door automatically opens.

Temperature sensor

Automatic opening device

Rack

Soundproof
& Anti-vibration Rack

The soundproof rack is equipped with sound-absorbing materials on five internal sides, providing excellent noise insulation (up to 25 dB) and maximizing sound absorption performance.

1 3 5 7 8 9

Standard configuration

Equipped with 4 mounting frames
Front door: acrylic or glass (optional)
Rear door: steel door with soundproof material
Sides: fixed steel panels with soundproof material (non-openable)

Standard accessories

Fan Shelf Power Outlet Rear Cable Bar

Rack

MINI RACK

Designed in compliance with international standards (IEC, DIN, EIA), this product is ideal for installing, maintaining, and storing small to medium-sized network equipment.

Featuring a refined design that blends well with office environments, it is highly suitable for mounting compact devices such as hubs, routers, switches, and CSU/DSU, and performs exceptionally well in limited spaces.

2 3 4 5 7 6

Standard configuration

2 mounting frames installed (rear frame can be additionally fixed as an option)
Front door: removable 5T safety tempered glass
Rear door: removable door
Side doors: removable doors
Color: ivory

Standard accessories

Fan Shelf Power outlet

Rack

Copper busbar rack

It is a copper terminal rack designed for apartment internet (wall-mounted use), allowing selective installation of communication transmission equipment for high-speed internet services depending on purpose. It protects equipment from external environmental factors.

Left and right side openings are easy to access, fluorescent lighting turns on when the door is opened, and it is designed for wall-mounted installation.

2 3 4 5 6

Rack

Slim-type copper terminal rack

It is a slim-type copper terminal rack for apartment internet (wall-mounted use), designed to selectively install communication transmission equipment for high-speed internet services depending on purpose, while protecting equipment from external environmental factors.

It is a standardized product used for installing dedicated high-speed internet lines in apartments and buildings, and is manufactured in a wall-mounted configuration.

2 3 4

Rack

Wall-mounted distribution panel

It is mainly installed on interior and exterior building walls and is equipped with power control switches. It is a device that distributes electrical power according to various loads such as communication equipment and power products.

2 3 4 6

Standard configuration

Material: Steel or SUS series
Circuit breaker: MCCB (Molded Case Circuit Breaker), ELCB (Earth Leakage Circuit Breaker)
Protection device: SPD (Surge Protection Device)
Others: Terminal block, power/telecom grounding

Rack

Distribution panel

It is mainly installed outdoors and is designed to protect against external impact and leakage caused by water ingress or short circuits. It is equipped with power control switches and distributes electrical power according to various loads such as communication equipment and power products.

1 2 3 4 6 7 8

Standard configuration

Material: SUS series (stainless steel)
Circuit breaker: MCCB (Molded Case Circuit Breaker), ELCB (Earth Leakage Circuit Breaker)
Protection device: SPD (Surge Protection Device)
Others: Terminal block, power/telecom grounding

Rack

Housing

It maintains optimal operating conditions inside the enclosure even in highly variable outdoor environments. It is designed to protect equipment from temperature changes, dust, moisture, and external impacts.

It is a rack that applies the international protection rating IEG5291 (IP04), allowing front and rear opening for improved maintenance convenience, and features a dual-layer insulation structure on all six internal sides.

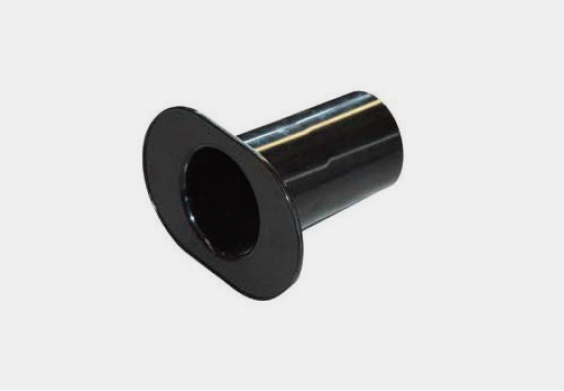

Spool Kit

Vertical cable routing and slack management
Material: Polycarbonate

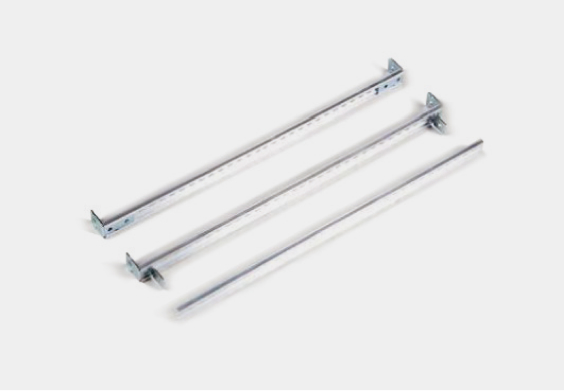

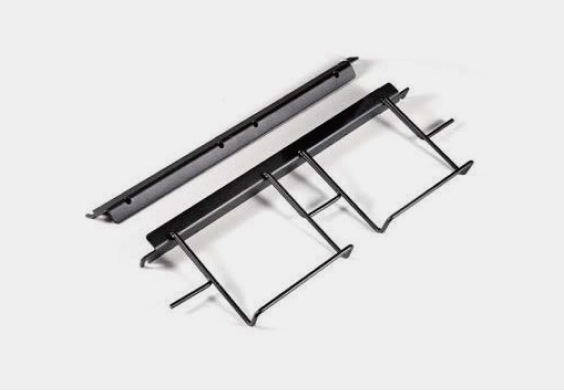

19″ 23″ Wire Cable Bracket

Public line (external network) cable management
Material: Steel
Surface treatment: Powder coating

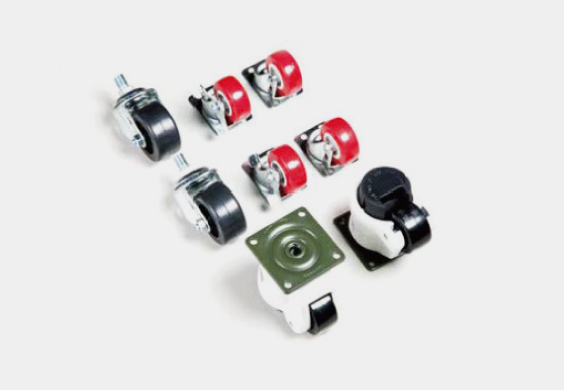

Caster

For rack movement applications
Allowable load: 1/250 kg, 4/1000 kg, Locking mechanism for anti-slip protection

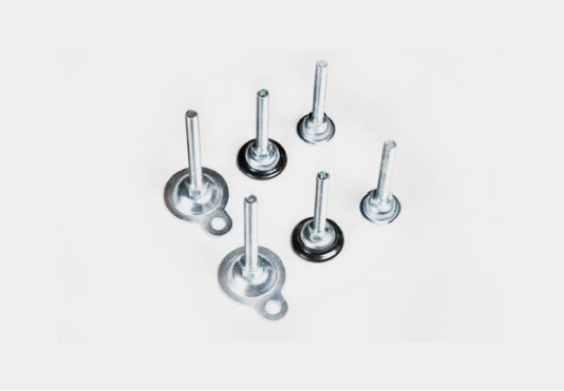

Levelling Foot

Level adjustment during installation
M12 bolt

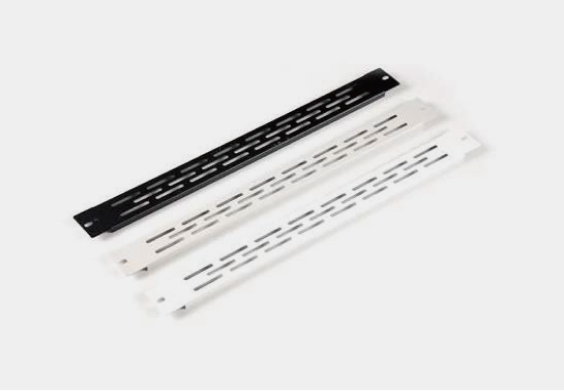

Cable bar (for rack use)

Rear and side rack-mounted cable management
Material: Aluminum 2.0T

Cable management for open rack use

Rear and side cable management for rack
Material: Steel

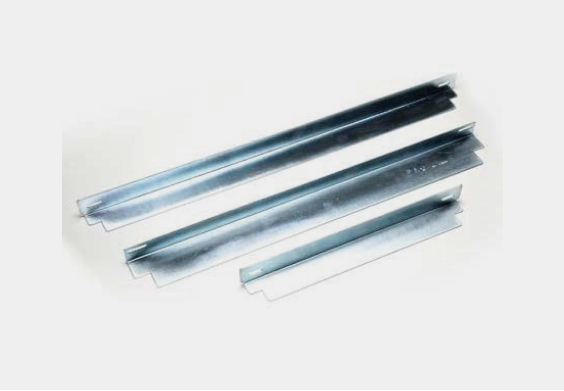

Guide Angle

For supporting heavy-duty equipment
Allowable load: up to 80 kg
Material: Steel
Surface treatment: Plating

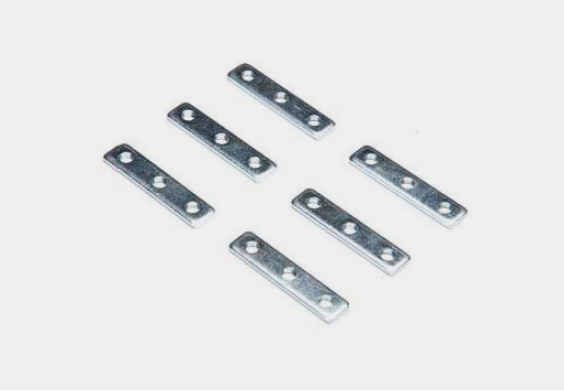

Slim nut

For equipment fastening
Material: M5 bolt (nickel-plated)

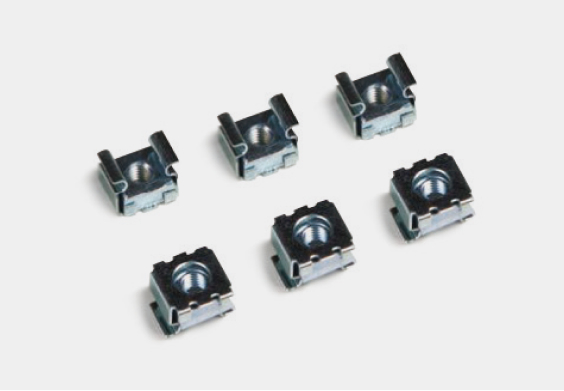

Cage Nut

For equipment fastening
Material: Steel
Surface treatment: Plating

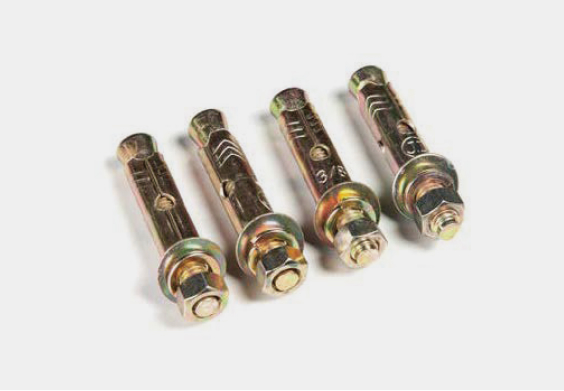

Set Anchor

Secures the rack to prevent vibration and movement.

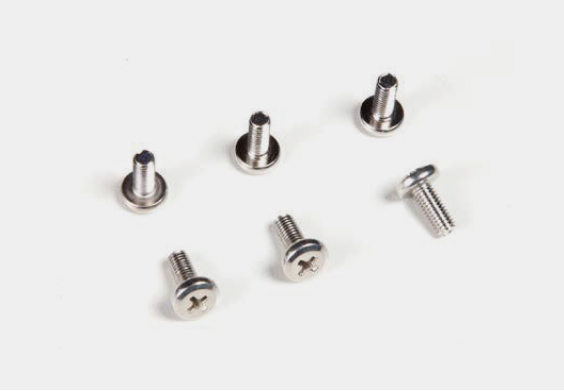

Mounting bolt

Equipment fastening
Material: M5 × 10 (nickel-plated)

22-inch monitor bracket

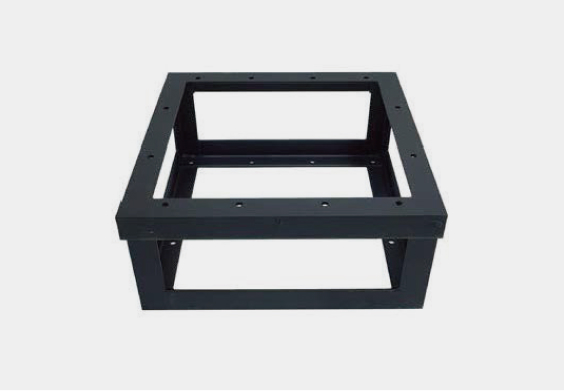

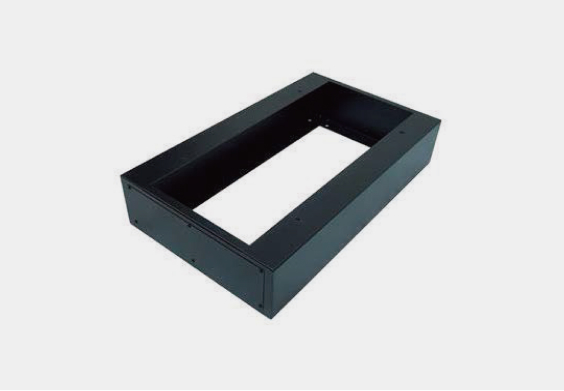

Seismic rack base (raised floor type)

Seismic rack base (solid floor type)
