Business Areas
ICT Infrastructure
We provide optimal solutions for building information and communication networks for a wide range of clients, including public institutions, local governments, and data centers.

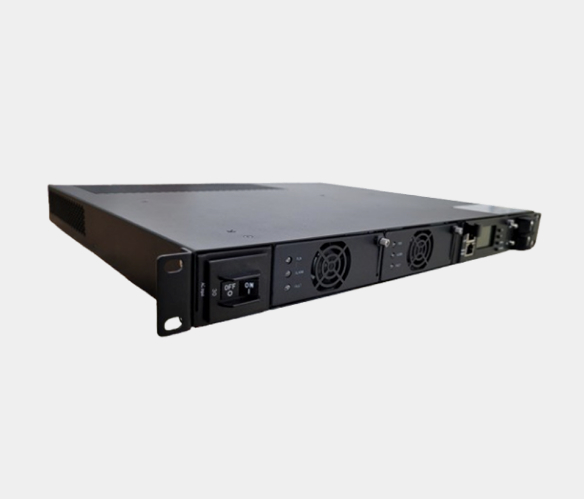

Power Supply Unit
GPE48 Series
48V30A~150A
- Hot-swappable module design for easy expansion and maintenance
- Highly reliable, high-efficiency rectifier system for stable DC power supply
- Over-discharge protection circuit to extend battery lifespan
- Remote monitoring via SNMP, CAN, or RS485
- 30A, 50A, and 75A module configurations scalable up to 150A

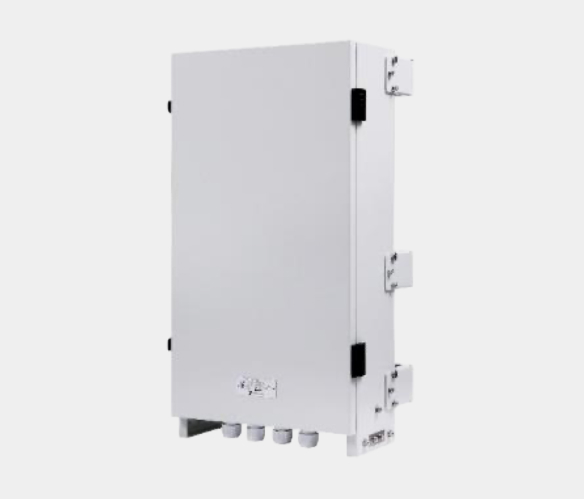

Power Supply Unit
Outdoor rectifier
- IP55 or higher dust and water protection rating
- Highly reliable, high-efficiency rectifier system for stable DC power supply
- Over-discharge protection circuit designed to extend battery lifespan
- Remote monitoring via SNMP, CAN, or RS485
- Over 8,500 PS-LTE (Public Safety LTE) base stations operated for the Ministry of the Interior and Safety national disaster and safety communication network

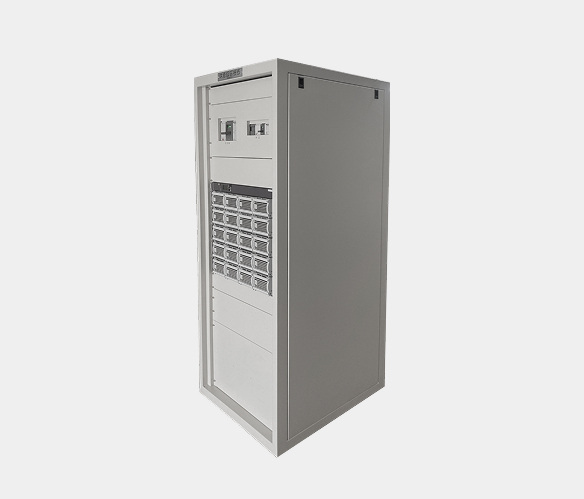

Power Supply Unit
ER48 Series
48V50A~1200A
- Hot-swappable module design for easy expansion and maintenance
- Highly reliable, high-efficiency rectifier system for stable DC power supply
- Over-discharge protection circuit to extend battery lifespan
- Remote monitoring via SNMP
- 50A module configuration scalable up to 1200A for high-capacity systems

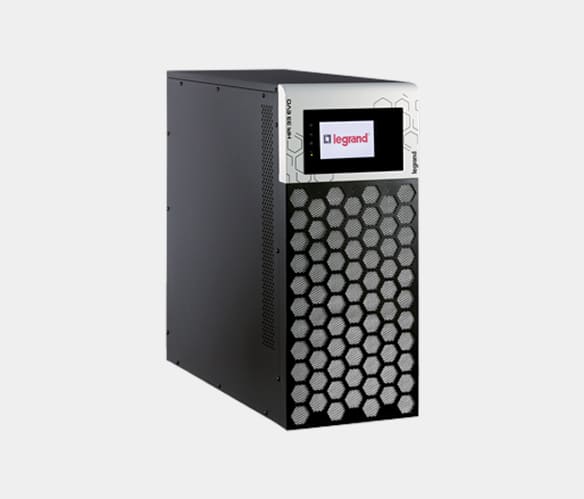

Power Supply Unit
Daker DK Plus
1 - 10kVA
- VFI-111 online double conversion
- User-friendly display
- Extended backup time with additional battery cabinet
- Smart battery management
- Automatic and manual bypass (optional)
- Easy battery replacement
Power Supply Unit

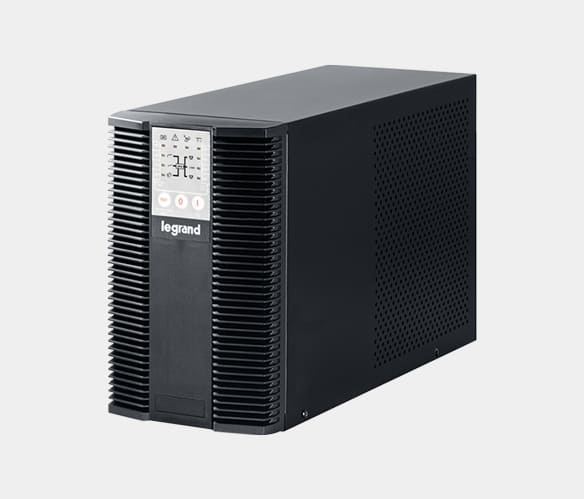

Keor LP
1 - 3kVA
- Conventional single-phase UPS available in three versions depending on power supply
- Rated capacity: 1–3 kVA
- VFI-SS-111 online double conversion
- RS232 communication port
- LAN / SNMP connectivity available
- Extended backup time with additional battery cabinet
- Compact design requiring minimal installation space
Power Supply Unit
Keor SPE RT
1,000 - 3,000VA
- Single-phase UPS: line-interactive
- Rotatable LCD display
- Backup expansion capability
- Full connectivity (USB/RS232, SNMP, EPO/ROO)
- Built-in two dry contacts (power failure, low battery)
- Hot-swappable battery replacement
Power Supply Unit
Keor PDU
800VA
- Low power consumption
- Cost-effective solution
- Sockets with full protection features
- Front-access installation and maintenance
- Low-noise operation
- Compact installation footprint
- Lightweight design
- Easy wiring and installation
Power Supply Unit
Keor Multiplug
600VA / 800VA
- Backup time: 10 minutes
- Protection against discharge, overcharge, short circuit, and overheating
- Combined power button / LED indicators
- USB charging port
- Automatic restart
- 6 surge-protected outlets + 2 standard outlets
- USB communication port
- Telephone / modem / fax protection
- User-friendly status signals and indicators
- Easy replacement of internal battery
Power Supply Unit

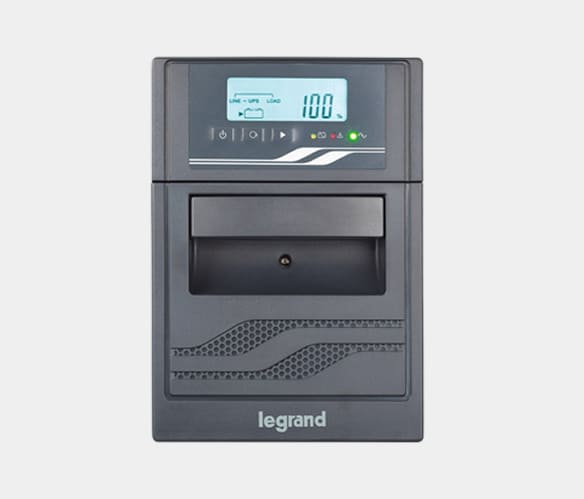

Niky S
1000VA - 3000VA
- Pure sine wave output
- VI line-interactive topology
- Boost and buck AVR (automatic voltage regulator)
- Dedicated microprocessor-based control
- Easy battery replacement
- RS232 communication port
- LAN / SNMP connectivity
- LCD display
Power Supply Unit

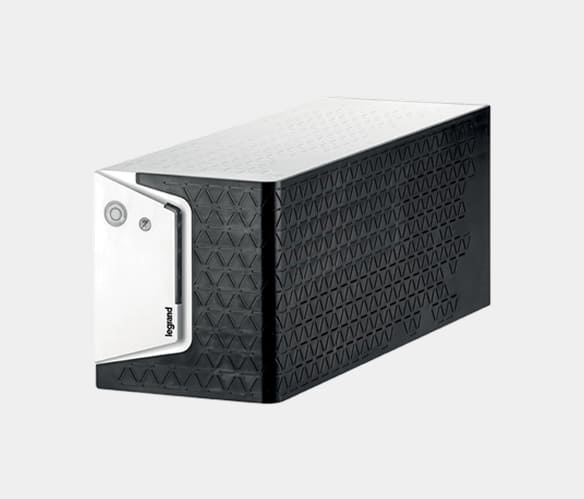

Keor SP
600 - 2000VA
- VI line-interactive topology
- Boost and buck AVR (automatic voltage regulator)
- Dedicated microprocessor-based control
- Easy battery replacement
- Adjustable output power
- Overload and short-circuit protection
- Cold start function
Power Supply Unit
Keor Compact
10-15-20 kVA
- Online double conversion
- Input power factor correction (PFC) (input PF > 0.99)
- Cold start capability
- Built-in backfeed protection
- SNMP management support
- Parallel operation of up to 6 units
- Built-in batteries for standard autonomy
- RS232, GenSet, dry contact
Power Supply Unit

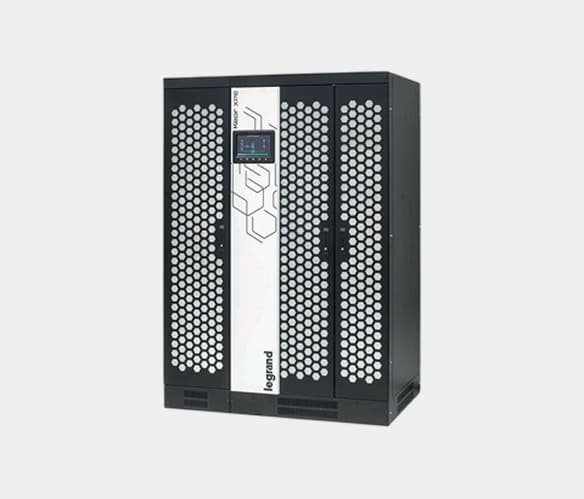

Keor XPE
250kVA or 300kVA
- Redundant configuration
- Hot service capability
- Flexible cabinet layout
- 3-level IGBT online double-conversion inverter
- Top/bottom cable and busbar connection
- Centralized or distributed battery configuration
- Lithium battery compatible
- Up to 96.4% VFI efficiency
- Up to 99% efficiency
- 2N synchronization
Power Supply Unit
Keor HP
60-800kVA
- Rectifier and inverter using IGBT devices
- Digital signal processor (DSP)
- High input/output power factor (PFC)
- Temperature-compensated battery charging
- Isolation transformer in the inverter section
- Low input and output total harmonic distortion (THD)
- Compatible with generator (GenSet) operation
- Parallel operation capability (up to 6 units)
- Central bypass for parallel systems (optional)
Power Supply Unit

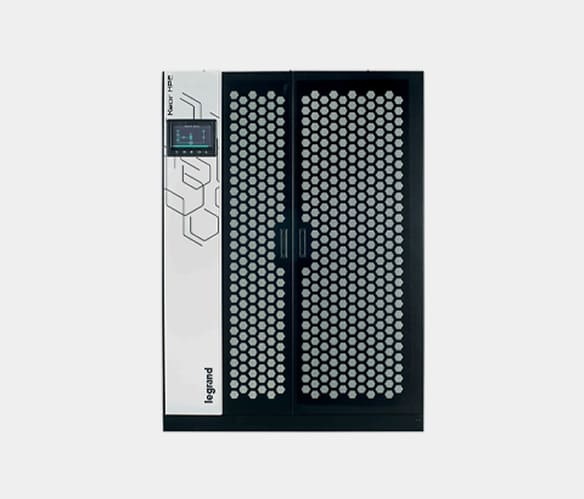

Keor HPE
60 - 600kVA
- Rectifier and inverter with IGBT technology
- Digital signal processor (DSP)
- High input and output power factor (PFC)
- Temperature-compensated battery charging
- Isolation transformer in the inverter section
- Low input and output total harmonic distortion (THD)
- Compatible with generator (GenSet) operation
- Parallel operation capability (up to 6 units)
- Central bypass for parallel systems (optional)
Power Supply Unit
Keor T EVO
10 - 60kVA
- 3-level switching technology
- Rectifier and inverter with IGBT technology
- Digital signal processor (DSP)
- TFT touch panel
- High input power factor (PFC)
- Output power factor of 1.0 (PF=1)
- Low input and output total harmonic distortion (THD)
- Parallel operation capability (up to 4 units)
Power Supply Unit
HPi 33 EVO
10 - 40kVA
- Compact installation footprint
- Parallel configuration of up to 4 units
- Enhanced battery management
- Temperature-compensated battery charger
- Selectable and adjustable battery charging current
Power Supply Unit
Keor MP
60 - 200kVA
- Modular-based architecture
- Wide communication capabilities
- Intuitive 7-inch multi-color touchscreen
- Real-time status indication via LED
- Real-time waveform monitoring
Power Supply Unit
Keor MOD
125kW - 250kW
- Available in two cabinet configurations (up to 125 kW and up to 250 kW)
- Internal backup capacity up to 125 kW
- UPS system capacity up to 600 kW
- Conversion efficiency up to 96.8% (power module efficiency), up to 2× improvement
- Up to 99% efficiency in ECO mode
- Output power factor = 1
- Modular redundancy with N+1 configuration
Power Supply Unit
Trimod HE
10 - 80kW
- VFI-SS-111 online double conversion
- Up to 96% high efficiency
- Power factor of 1
- Excellent flexibility, scalability, and redundancy (input/output 3-1 configuration supported)
- Easy and fast maintenance
- Self-diagnostics, monitoring, data history, and parameter settings via display
- New cabinet design for backup time and capacity expansion, and system optimization

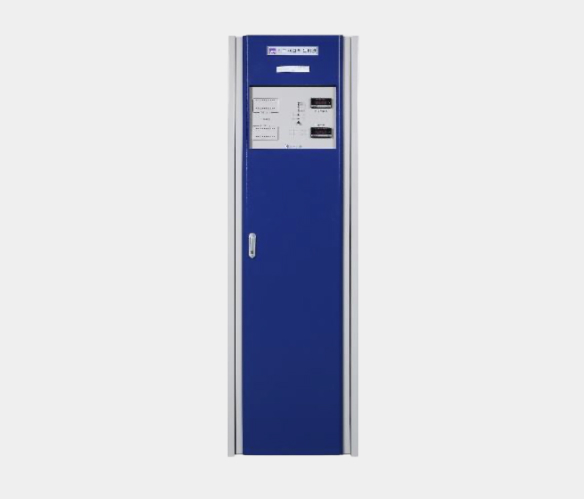

Power Supply Unit
PDR
(Power Distribution Rack)
It receives a -48V DC input power supply and distributes DC power to each distribution circuit through a main distribution unit using a redundant dual power supply system.
Dimension : W600 × D600 × H2150 (standard)
Main : 1200A
Sub Circuits : 50A ~ 150A
Distribution Channels : 30CH (standard)

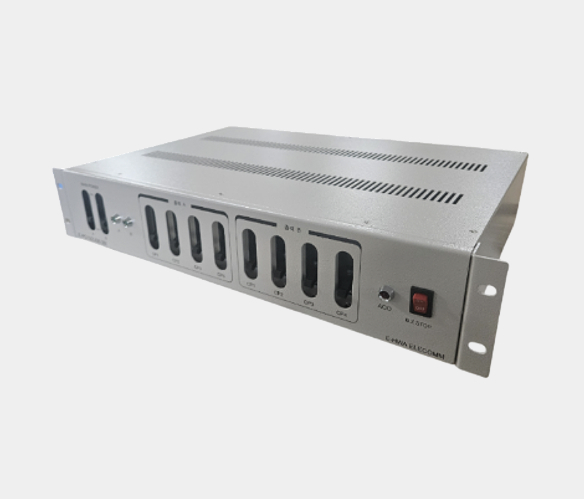

Power Supply Unit
PDP
(Power Distribution Panel)
A Rack Mount Type designed for easy installation and operation, it receives -48V DC input power and distributes DC power to each distribution circuit using a redundant dual power supply system.
Dimension : : W483 × D380 × H88 (2U)
Main : 100A
Sub Circuits : 30A ~ 50A
Distribution Channels : 4 X 2CH (Redundant)
Power Supply Unit

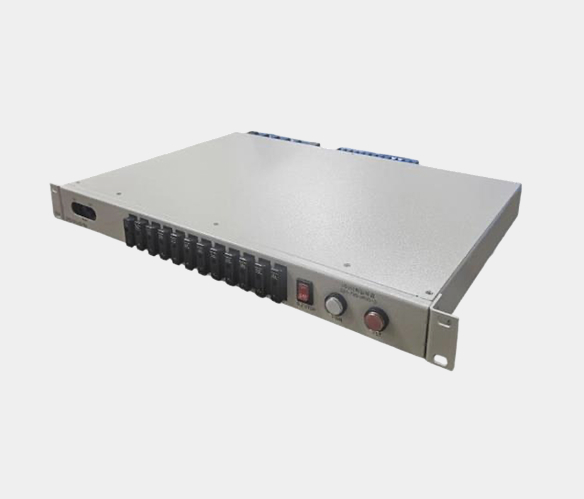

A Rack Mount Type designed for easy installation and operation, it receives -48V DC input power and supplies DC power to each distribution circuit.
Dimension : : W483 × D380 × H44 (1U)
Main : 100A
Sub Circuits : 10A
Distribution Channels : 12CH
Power Supply Unit

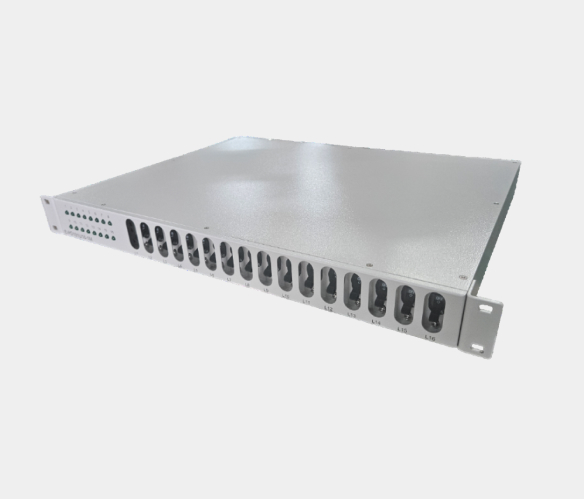

A high-capacity Rack Mount Type PDP, featuring a compact 1U size, stably provides distribution capability for up to 16 channels.
Dimension : : W483 × D420 × H44 (1U)
Main : 250A
Sub Circuits : 30A
Distribution Channels : 16CH
